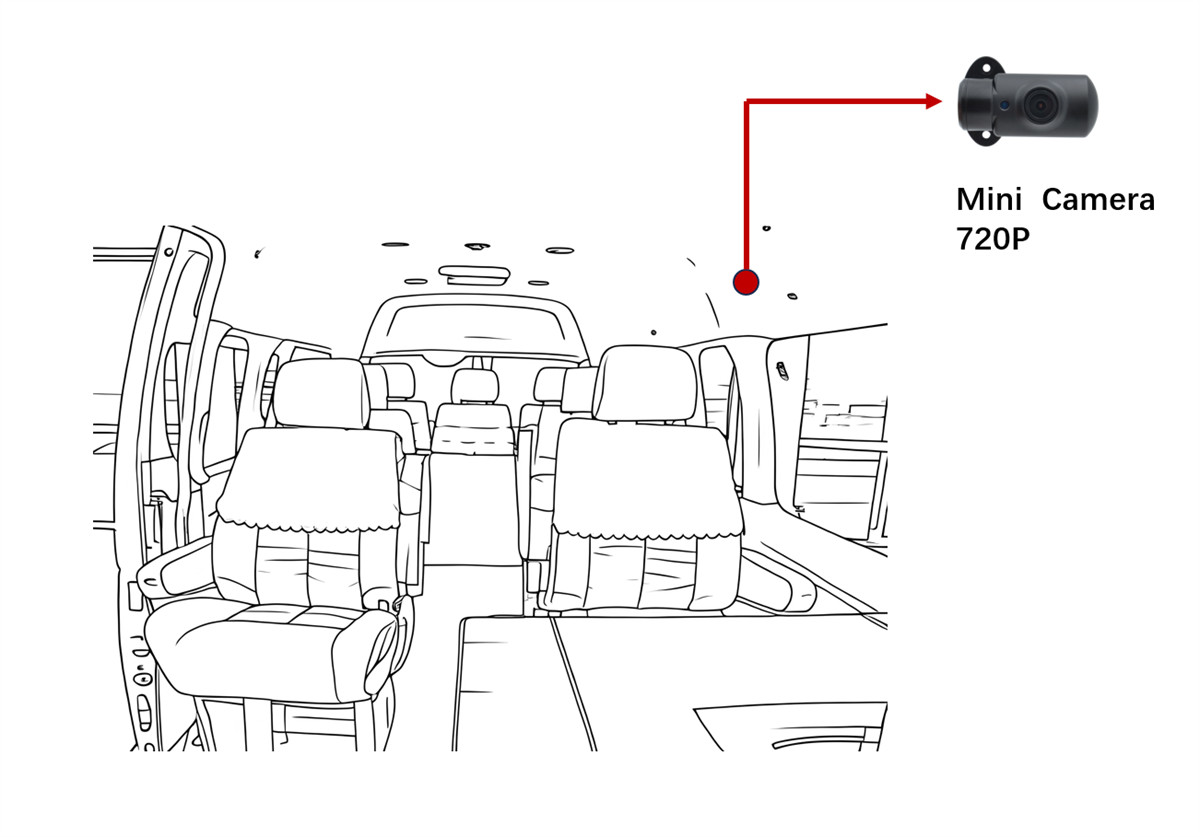

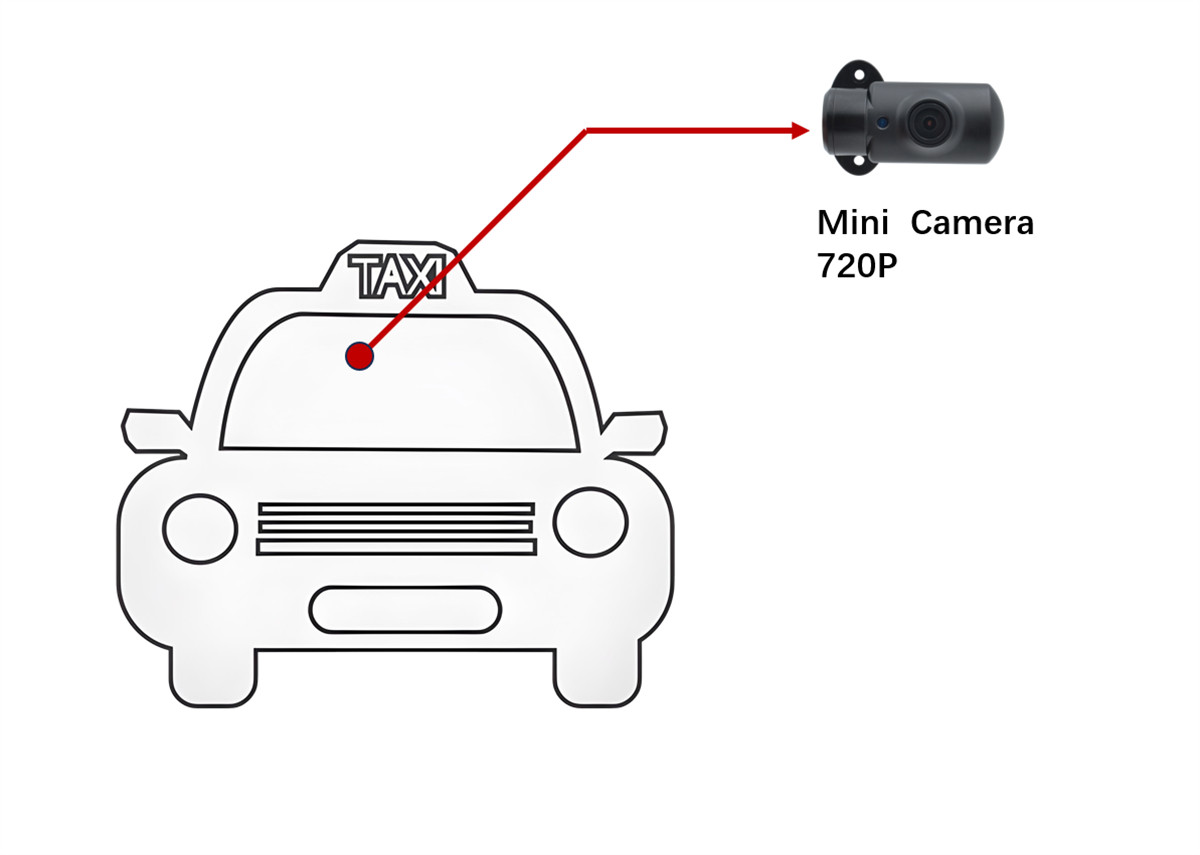

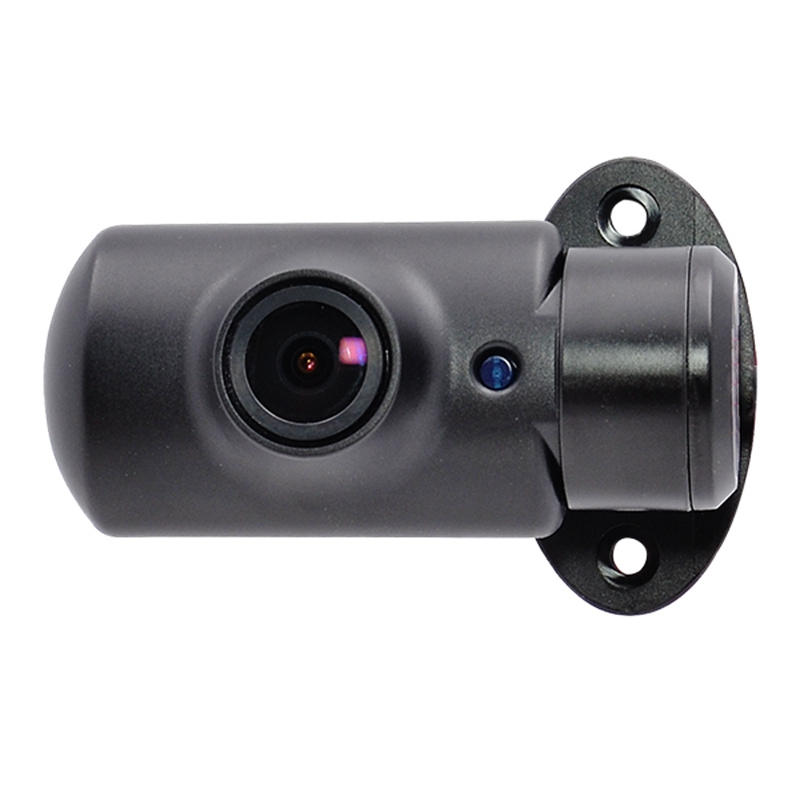

Mini 720P in-car front camera, ideal for small vehicles or cabins, offering excellent value for money and audio support. We offer OEM and ODM customisation, allowing you to choose from a range of chip solutions tailored to specific use cases, ensuring they meet the demands of complex environments.
Product features:
1. 720P high-definition resolution.
2. Support wide angle, up to 150 degrees
3. Infrared distance 3-5 meters
4. Support on-site voice collection.
5. Working temperature: -30oC---70oC.
6. Working voltage: DC12V
Specifications
Image sensor | 1/4‘ cmos |
Image resolution | 1280*720 |
Output Format | AHD |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | 150o |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 3m—5m |
Dynamic Range | 85db |
SNR | 52Db |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC——80oC，RH95%MAX |
Power Supply | 12V±10% |
|  |
