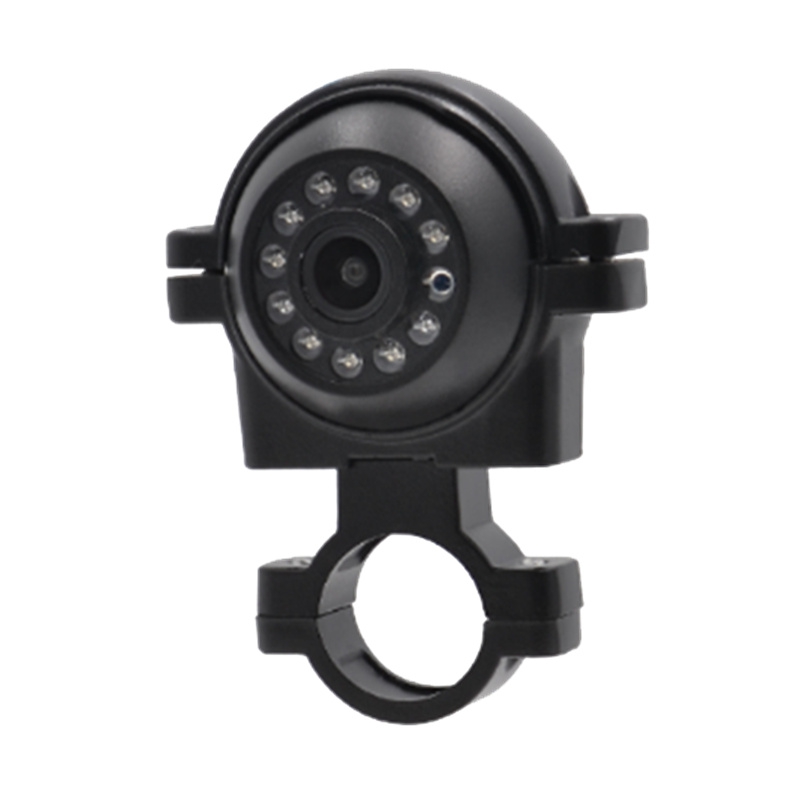

The side view camera is designed for bracket installation, and the camera has a wide adjustment angle. The waterproof capability reaches IP68. It is widely used in various commercial vehicles such as buses and trucks. We provide OEM/ODM services to meet various needs of customers.
Product features:
1. 1080P HD resolution.
2. Waterproof supports IP68
3. Supports mirroring image
4. Maximum angle supports 120 degrees.
5. Working temperature: -30oC---70oC.
6. Working voltage: DC12V
Specifications
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | 120o |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 3m—5m |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP68 |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC---80oC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
