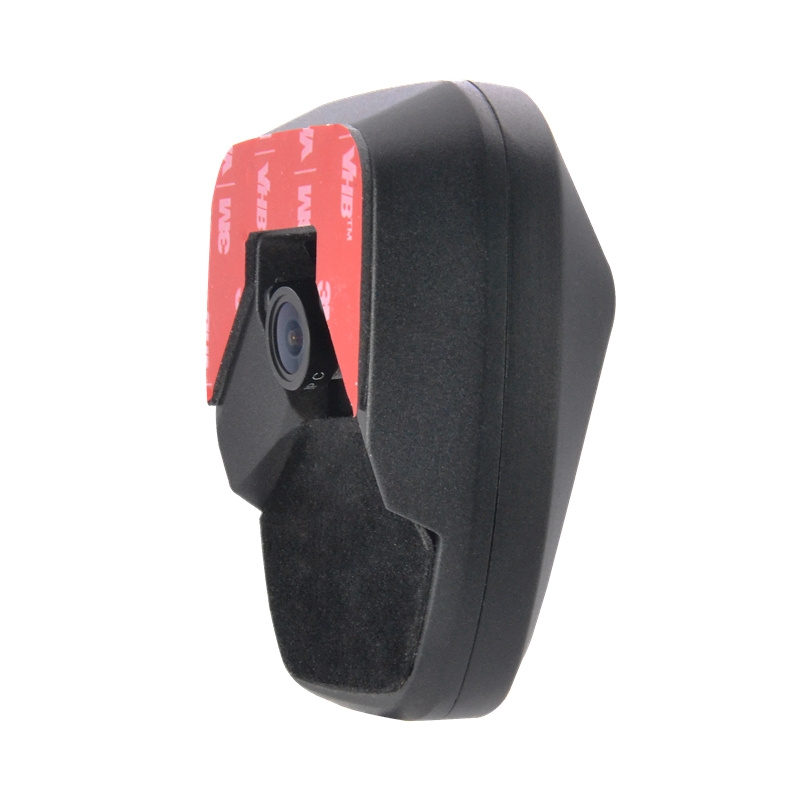

The ADAS camera is specifically designed for Advanced Driver Assistance Systems (ADAS). In line with the latest safety regulations, the new ADAS cameras feature a wider field of view, enhancing both driving assistance and blind spot safety. With sharp image edges, they provide more precise data for intelligent analysis. Additionally, they also offer OEM/ODM services, supplying reliable images and products for various algorithms.
Product features:
1. 1080P HD resolution.
2. Wide angle up to 120 degrees
3. 3M adhesive installation.

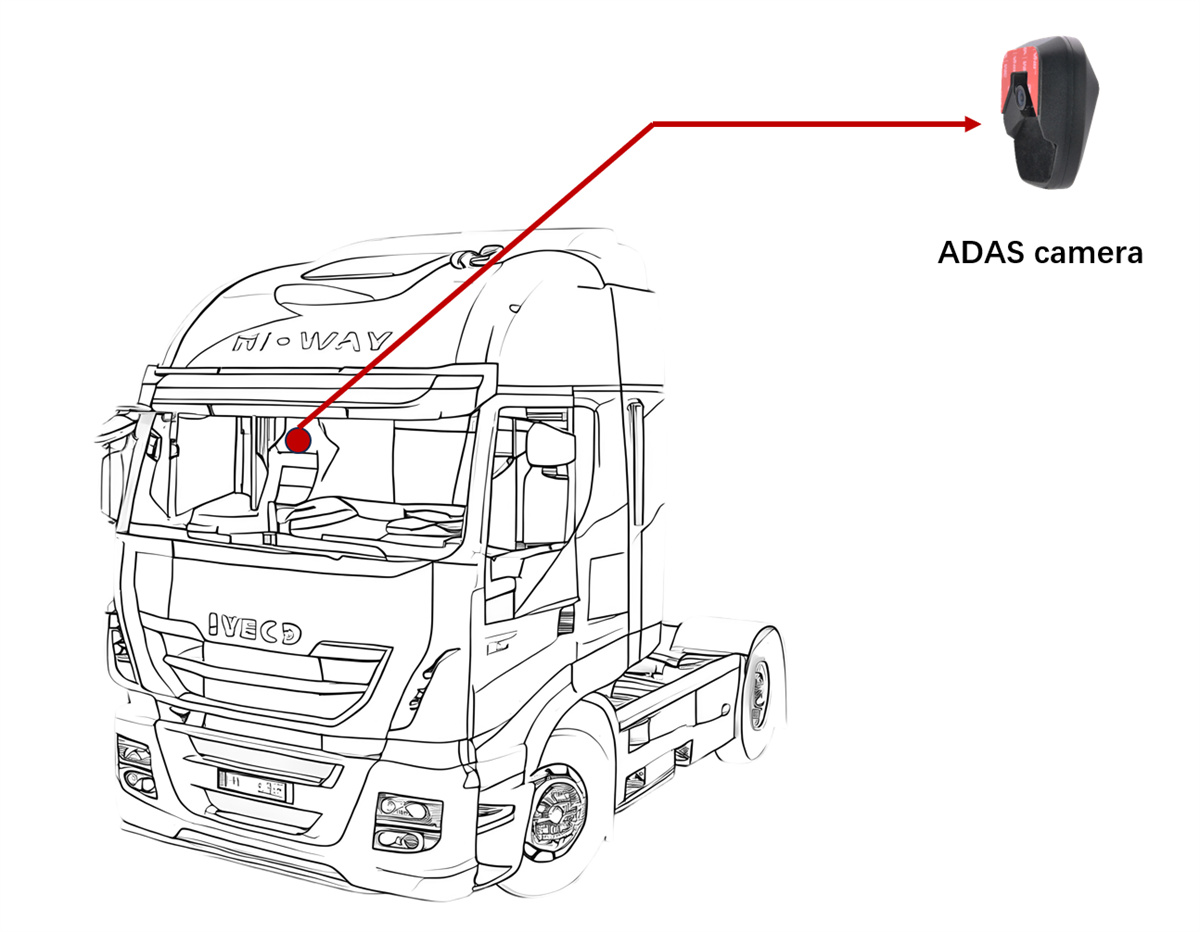

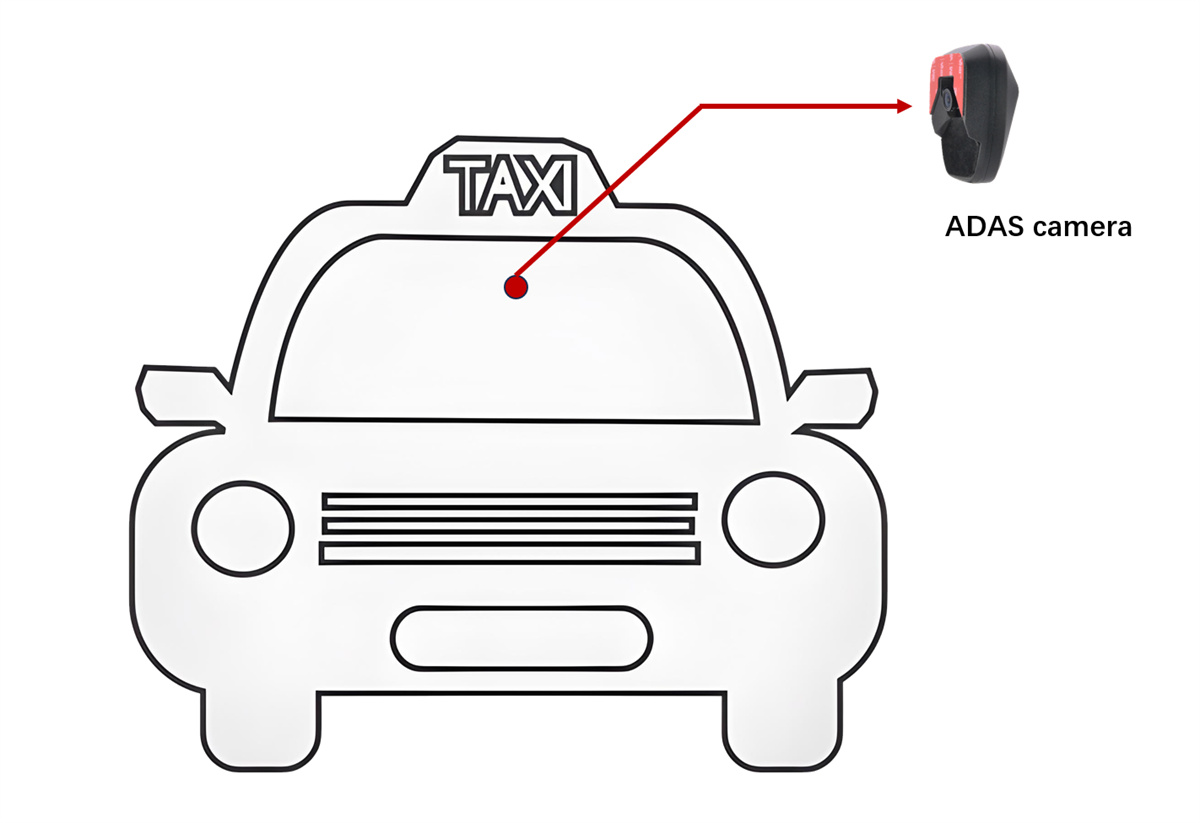

4. Suitable for front windshields at various angles.
5. Working temperature: -30oC---70oC.
6. Working voltage: DC12V
Specifications
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | UP to 120° |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0.1lux |
Dynamic Range | 85db |
SNR | 52Db |
Operating temperature | -30oC---70oC, RH95%MAX |
Storage temperature | -40oC——80oC, RH95%MAX |
Power Supply | 12V±10% |
|
|
