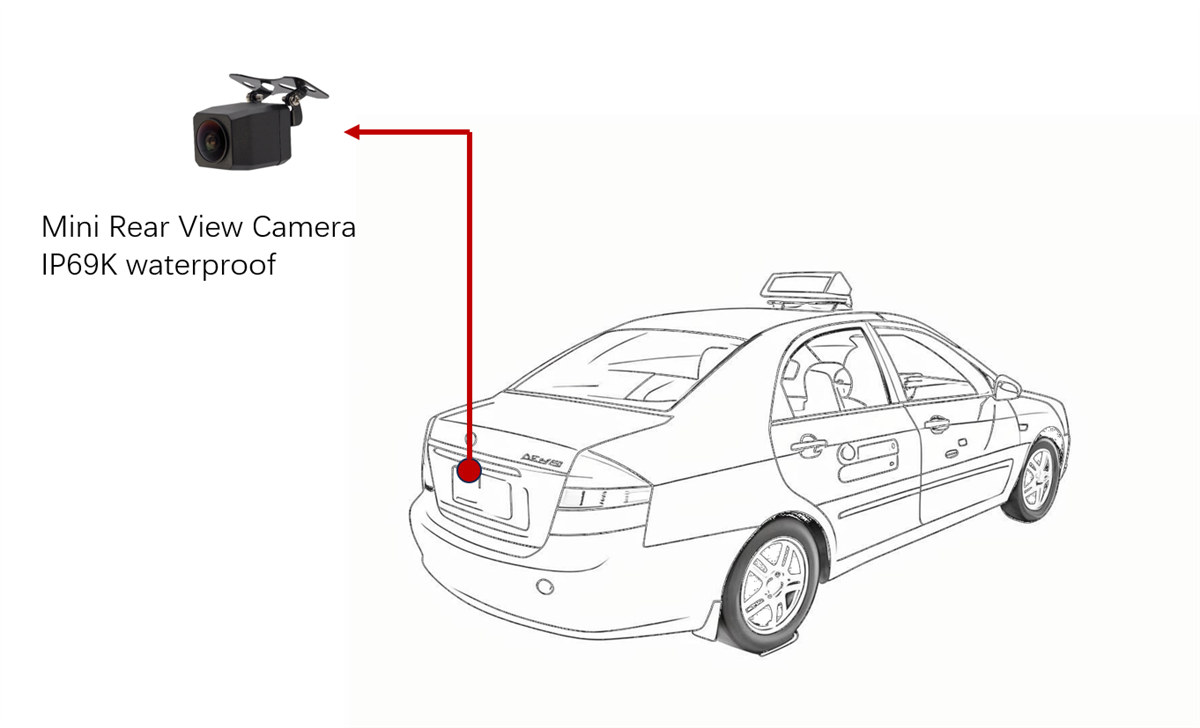

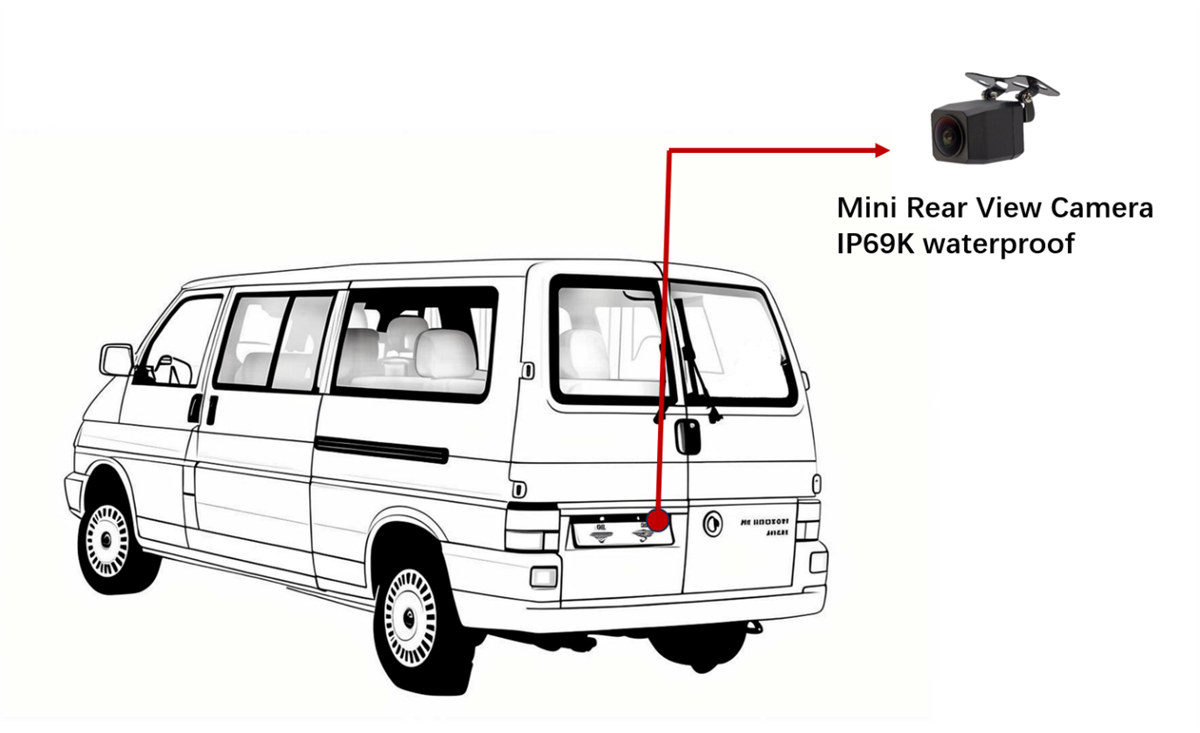

A mini reversing camera with an IP69K waterproof rating and a wide viewing angle of up to 150o. It is widely used in various small vehicles, designed to perform in complex driving conditions. We offer comprehensive OEM/ODM services and a range of chip solutions to meet diverse requirements.
Product features:
1. 1080P high-definition image
2. With wide-angle vision, the highest angle can reach 150o.
3. Support mirror function.
4. Waterproof performance reaches IP69K.
5. Sturdy design, excellent shock resistance.
6. Working temperature: -30oC---70oC.
7. Working voltage: DC12V
Parameter

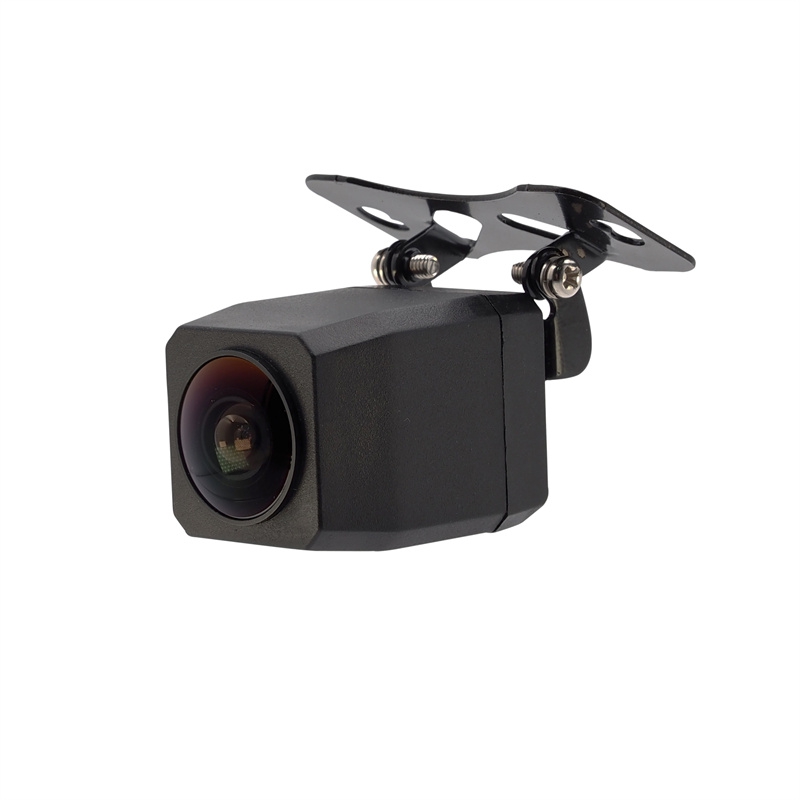

FHD321C-G3
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | MAX 150o |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP69K |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC---80oC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
