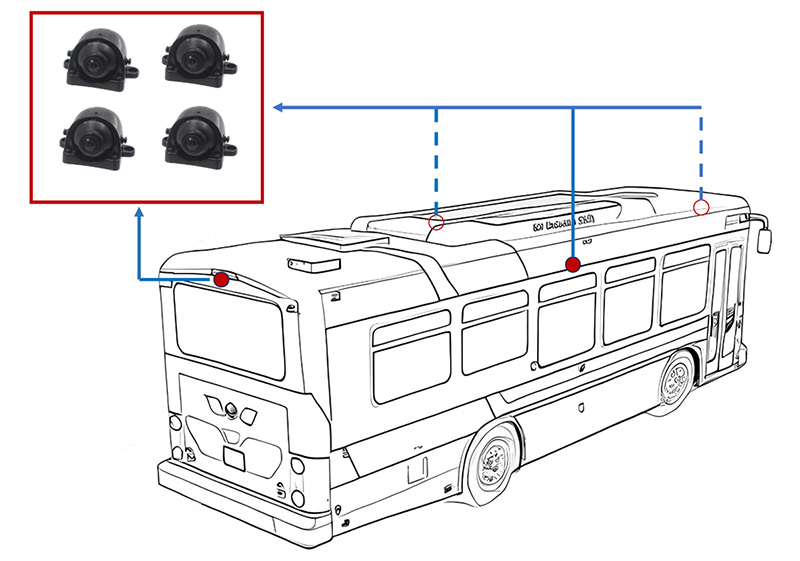

360° surround view camera system, equipped with sophisticated video processors, stitches multiple perspectives into a unified real-time bird's-eye view. This visual assistance enables drivers to detect surrounding objects and road conditions instantly, effectively minimizing blind spots and collision risks. We offer comprehensive OEM and ODM services, enabling tailored chip solutions for diverse application scenarios to address complex operational requirements.
Product features:
1. 1080P high-definition resolution.
2. IP69Kwaterproof design
3. Support wide angle, up to 180
4. Working temperature: -30oC---70oC.
5. Working voltage: DC12V
Specifications
Image sensor | 1/2.9' cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | Up to 180o |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0.1ux |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP69K |
Operating temperature | -30oC---70oC, RH95%MAX |
Storage temperature | -40oC——80oC, RH95%MAX |
Power Supply | 12V±10% |
