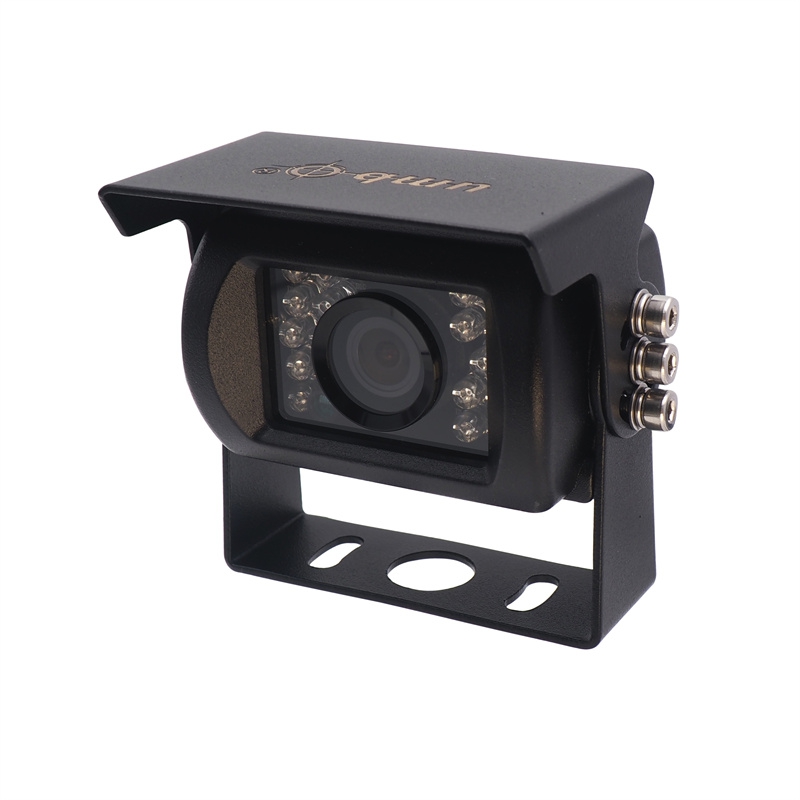

Traditional Reverse Camera
With a sunshade protection design and an IP68 waterproof rating, it is widely used in various vehicle reversing environments. It also offers a variety of OEM/ODM services and multiple chip solutions to cater to specific needs.
Equipped with network HD cameras, they deliver superior image quality, safer transmission, and easier maintenance.
Product Features:
1.1080P HD resolution.
2.Viewing angle up to 120o.
3.Supports mirror image function.
4.Waterproof rating of IP68.
5.Supports ONVIF protocol.
6.Infrared range: 5-10 meters.
7.Operating temperature: -30oC to 70oC.
8.Operating voltage: DC12V.
Available Options:
Economical version
Wide dynamic range version
Low illumination version
Parameter
Parameter
FN320E-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max120° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP68 |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC---80oC，RH95%MAX |
Power Supply | 12V±10% |
|
|
