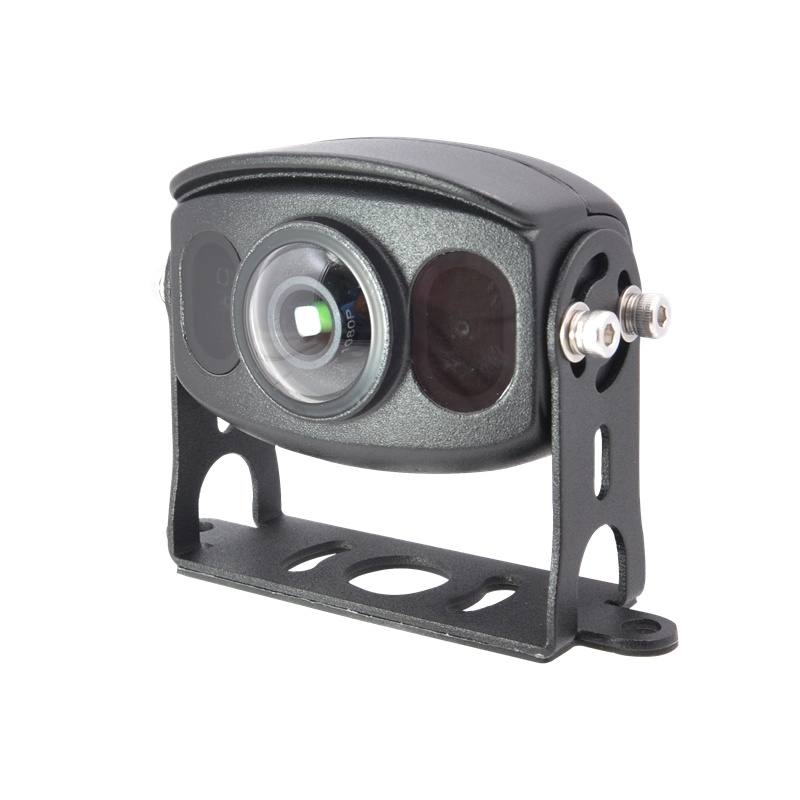

Featuring an arc-shaped corner design to enhance pedestrian safety, this product combines a wide-angle view with robust lens protection. Engineered for durability, it boasts IP69K waterproof performance, making it ideal for installation in diverse and challenging environments. Additionally, we offer comprehensive OEM/ODM services and a range of chip solutions to meet various customization needs. This camera boasts excellent heat resistance, with a maximum operating temperature of up to 80°C. Its wide dynamic range solution also grants it superior adaptability to various environments.
We use network HD cameras, which offer better image quality, more secure transmission, and easier maintenance.
Product features:
1. 1080P high-definition image
2. With wide-angle vision, the highest angle can reach 150o.
3. Support mirror function.
4、Support WDR function。
5. Waterproof performance reaches IP69K.
6. Sturdy design, excellent shock resistance.
7. Support ONVIF protocol.
8. Infrared distance: 5-10m
9. Working temperature: -30oC---80oC.
10. Working voltage: DC12V
Options chip solution:
Economic, WDR, low illumination
Parameter
FN321G-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max150° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 120db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP69K |
Operating temperature | -30oC---80oC， RH95%MAX |
Storage temperature | -40oC---90oC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
