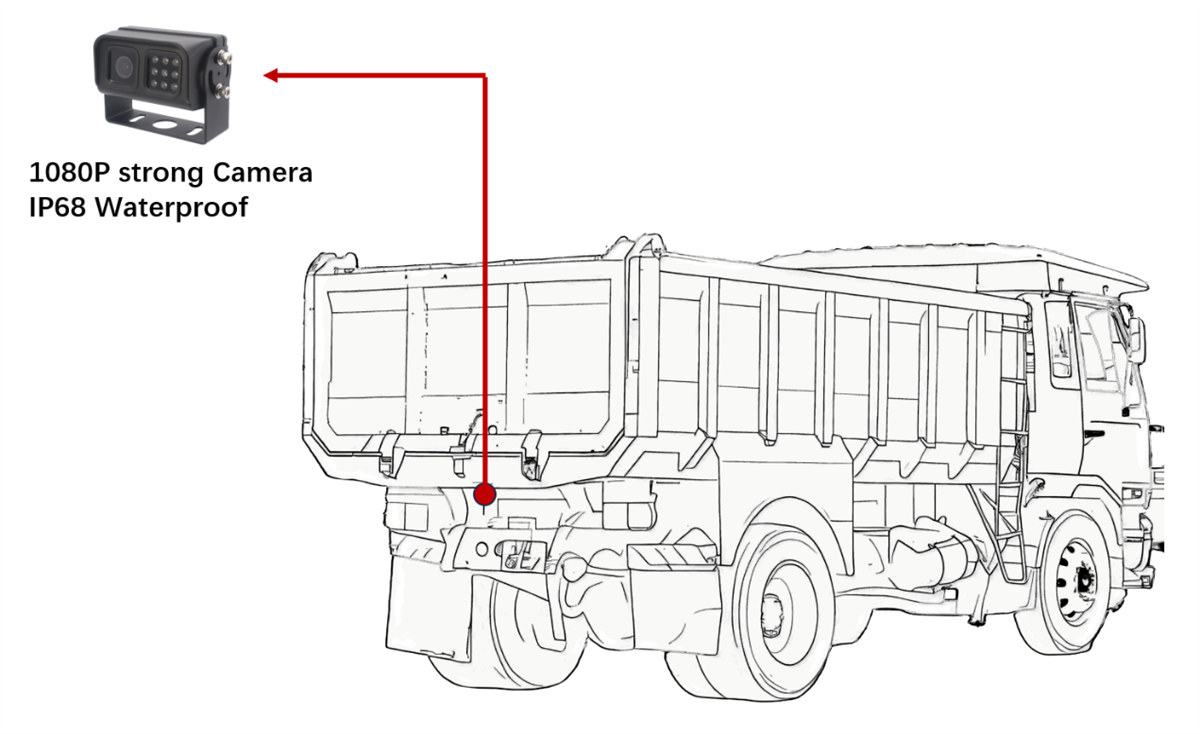

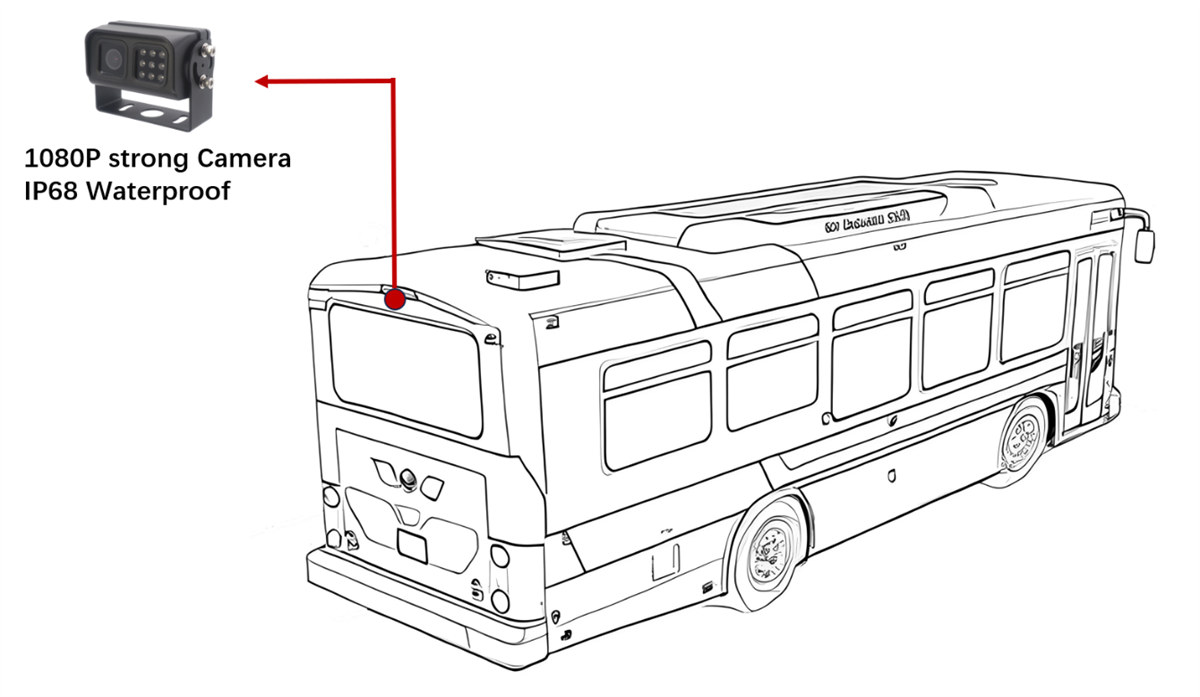

This is a durable reverse camera with an IP68 waterproof rating, making it suitable for various vehicle reversing needs in complex driving conditions. We offer extensive OEM/ODM services and a range of chip solutions to meet different requirements.
We use network HD cameras, which offer better image quality, more secure transmission, and easier maintenance.
Product features:
1. 1080P high-definition image
2. With wide-angle vision, the highest angle can reach 120o.
3. Support mirror function.
4. Waterproof performance reaches IP68.
5. Sturdy design, excellent shock resistance.
6. Support ONVIF protocol.
7. Infrared distance: 5-10m
8. Working temperature: -30oC---70oC.
9. Working voltage: DC12V
Options chip solution:
Economic, WDR, low illumination
Parameter

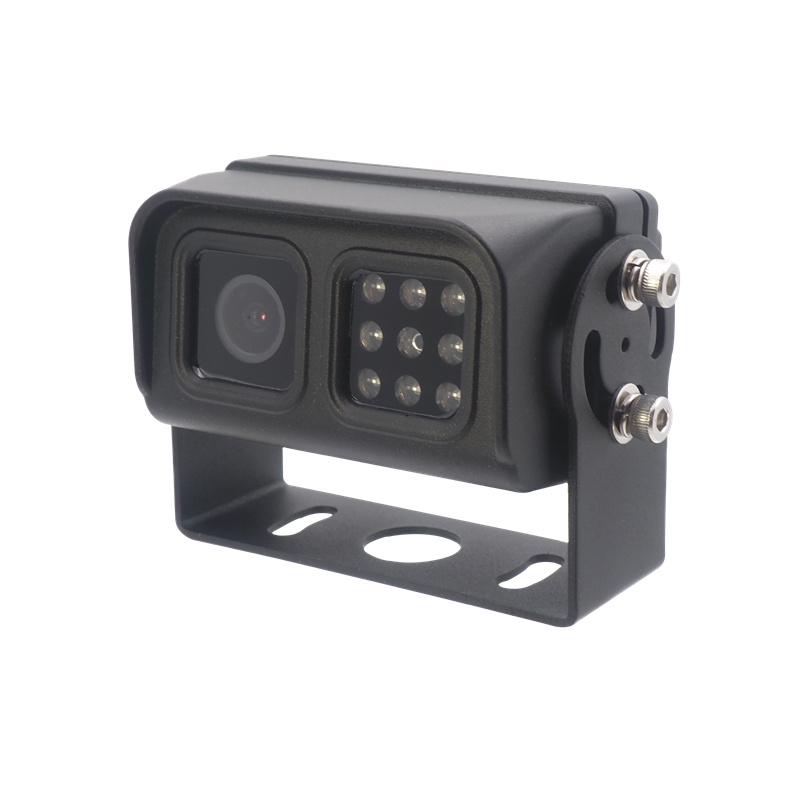

FHD322A-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max120° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP68 |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC——80oC，RH95%MAX |
Power Supply | 12V±10% |
|
|
