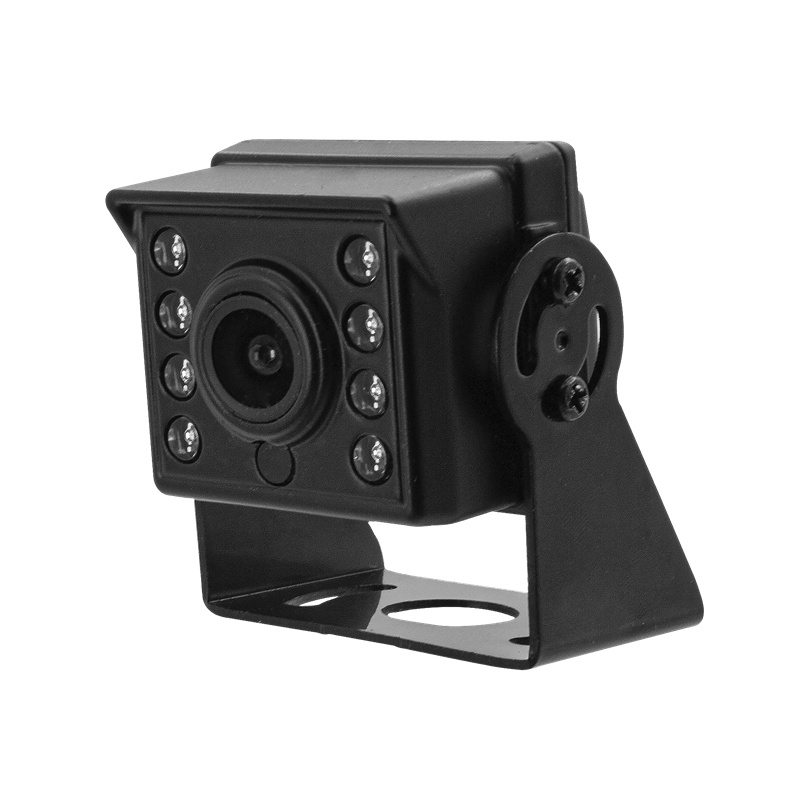

Compact Reverse Camera

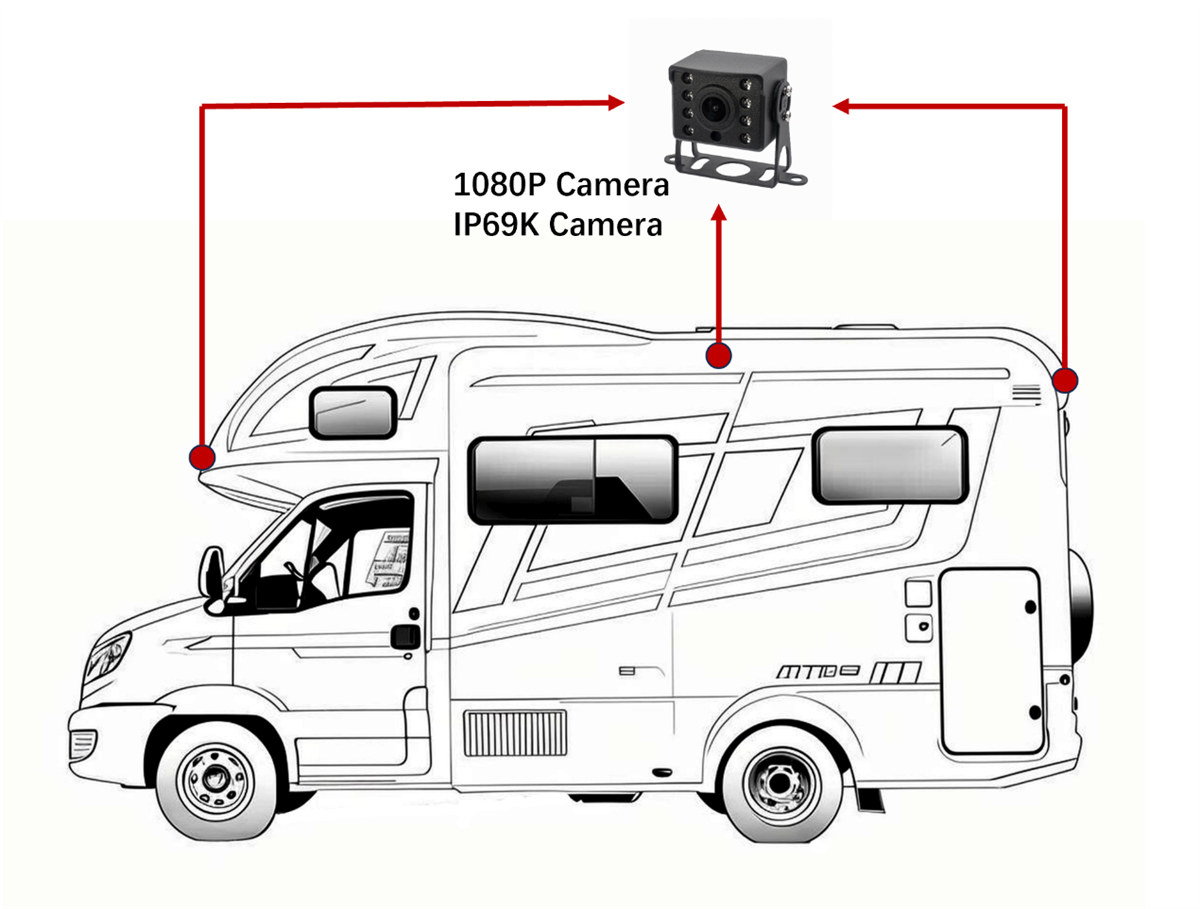

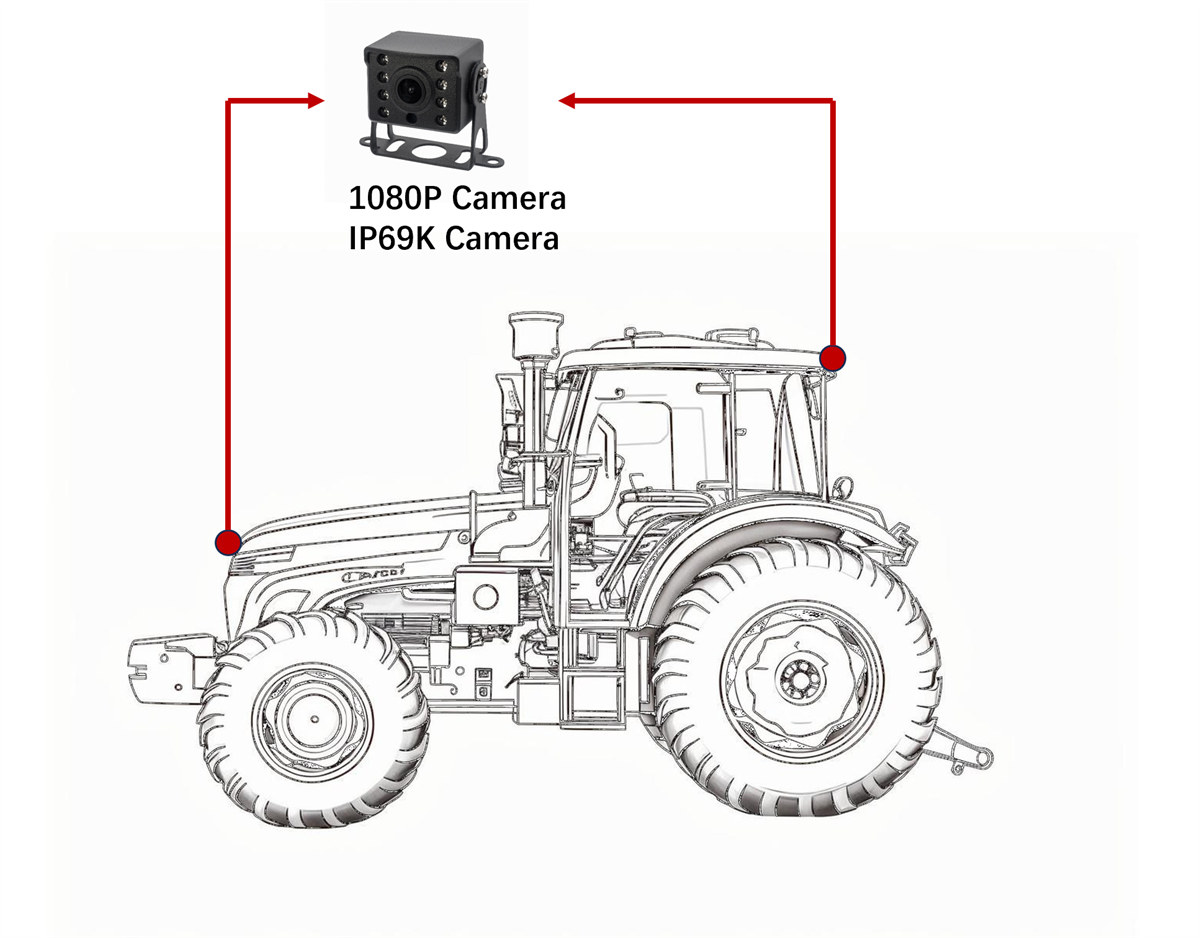

With an IP69K waterproof rating, this camera is widely used for reversing and surrounding monitoring in various vehicles, adapting to complex driving environments. OEM/ODM services are offered, along with multiple chip solutions to meet specific customer needs.
Equipped with network HD cameras, they deliver superior image quality, safer transmission, and easier maintenance.
Product Features:
1、1080P HD resolution
2、Viewing angle up to 150o
3、Supports mirror image function
4、Waterproof rating of IP69K
5、Supports ONVIF protocol
6、Infrared range: 5-10 meters
7、Operating temperature: -30oC to 70oC
8、Operating voltage: DC12V
Available Options:
Economical version、Wide dynamic range version、Low illumination version
Parameter
FN325C-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max150° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP69K |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC——80oC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
