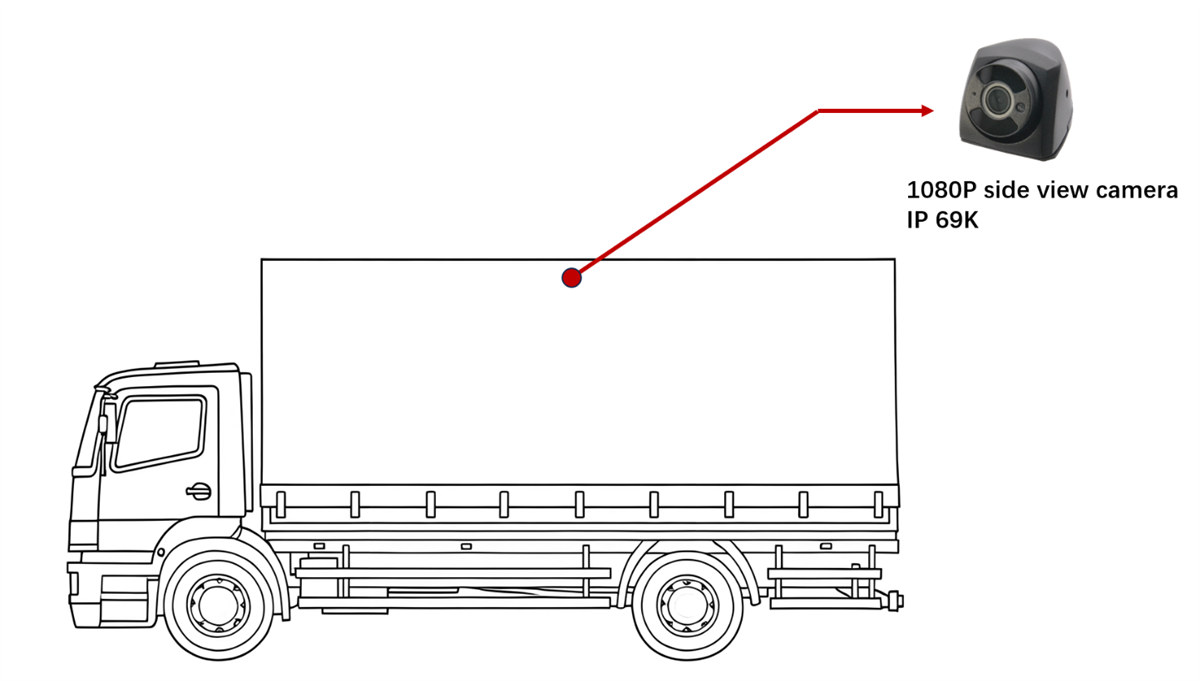

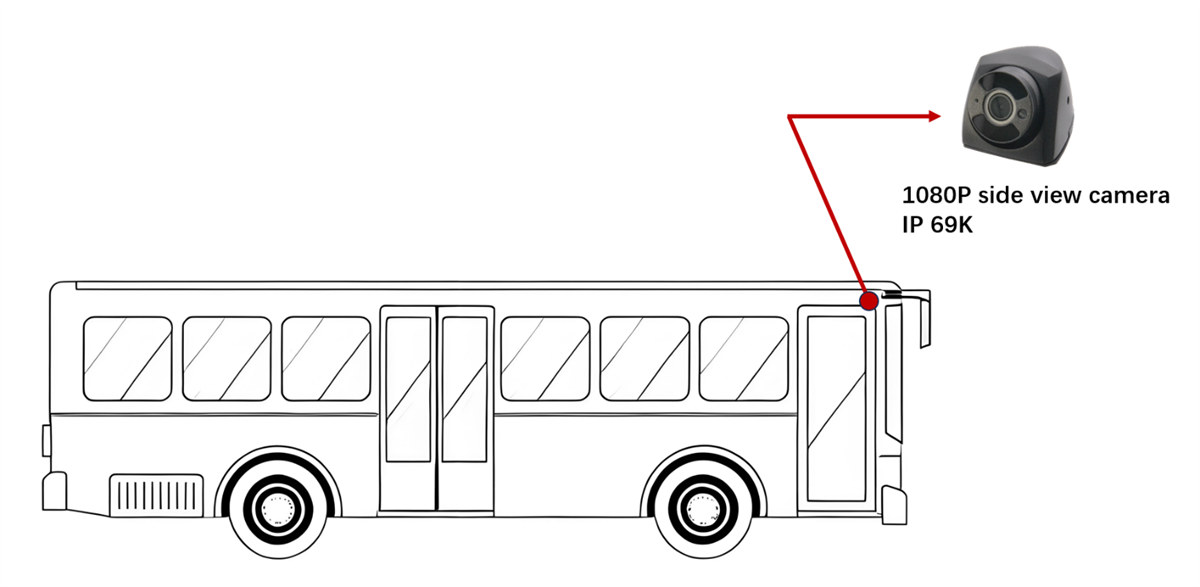

Side-View Camera Designed for Installation on the Vehicle's Side
With an excellent waterproof design, this camera boasts an IP69K waterproof rating. Its outstanding shockproof design allows for versatile installation on various parts of the vehicle, making it an excellent side-view camera. We also offer OEM/ODM services to provide customers with the best solution according to their needs.
Equipped with network HD cameras, it delivers superior image quality, safer transmission, and easier maintenance.
Product Features:
1、1080P HD camera
2、Suitable for exterior vehicle installation
3、Waterproof structural design with an IP69K rating
4、Wide-angle design, with a maximum angle of up to 150o
5、Supports ONVIF protocol
6、Infrared range: 5-10 meters
7、Operating temperature: -30oC to 70oC
8、Voltage: 12V ±10%
Specifications

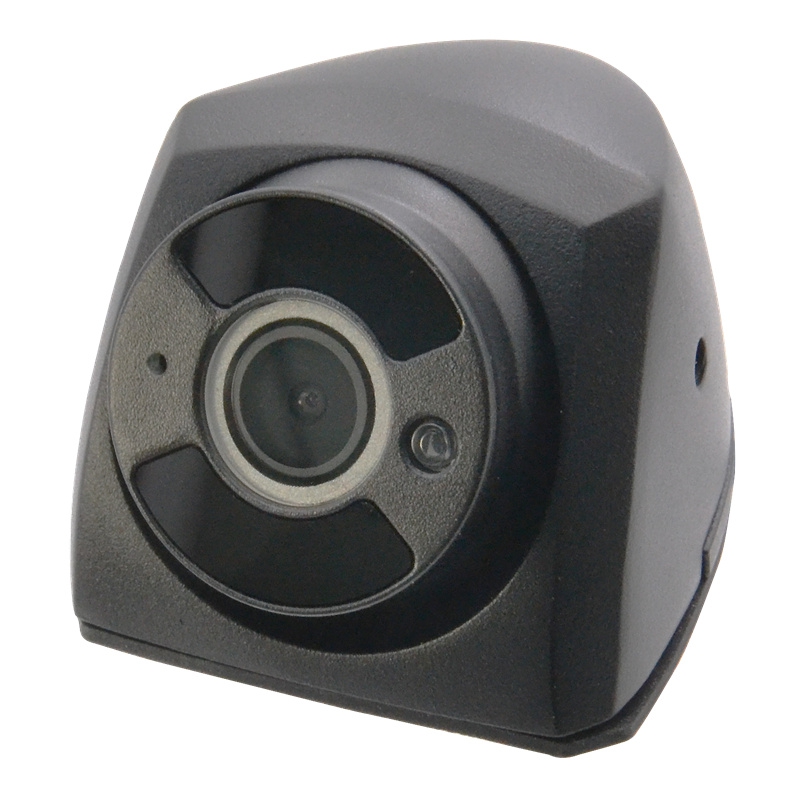

FN327K-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max150° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP69K |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC——80oC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
