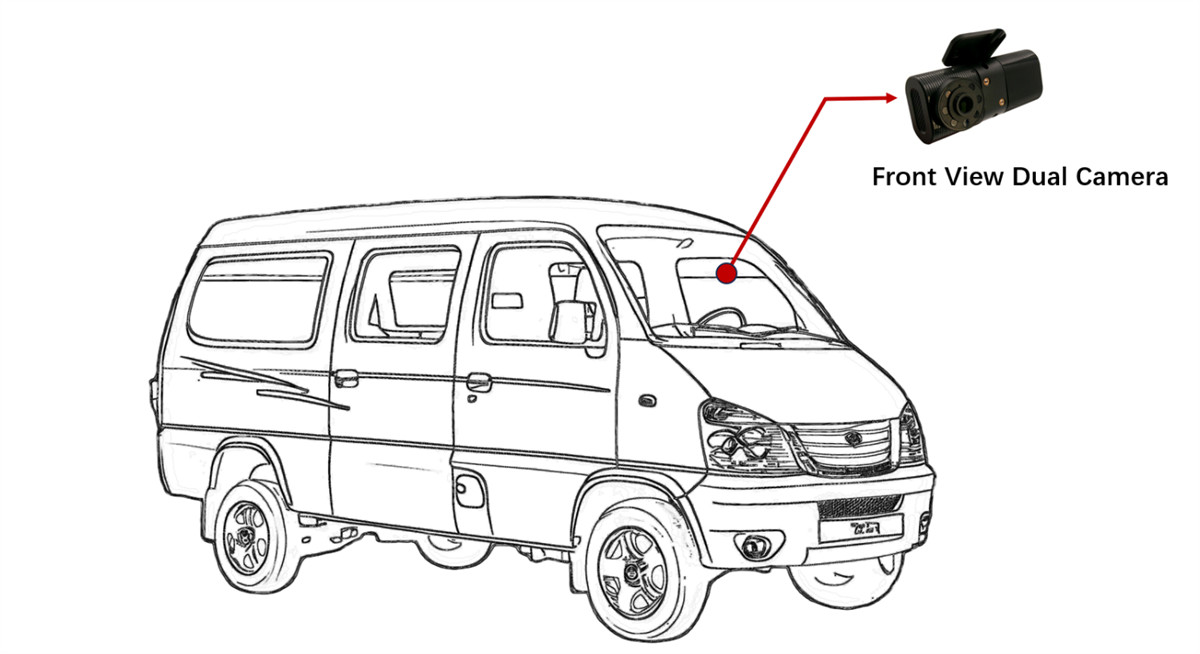

1080P WDR Vehicle Front View Dual Camera

An outstanding dual-camera ,design with OEM and ODM services, offering a range of options including wide-angle, wide dynamic range, and low-light performance. Inward-facing cameras can be equipped with 940nm infrared to ensure eye safety. Our optimized designs deliver enhanced stability and reliability for our customers.

Description
Make an inquiry

Product features:

Front view camera

1. 1080P high resolution

2. Support WDR function

3. Support wider angles

4. Working Voltage: DC12V

5. Operating temperature: -30-70℃

Optional chip solutions

Economic type, WDR type, low illumination type, high quality type

1080P Internal View Vehcile Camera

1. 1080P high resolution

2. Support wide-angle video.

3. Support 940nm infrared light, infrared distance 3-5m

4. Support audio

5. Voltage: 12V voltage

6. Working temperature: -30oC-70oC

Specifications

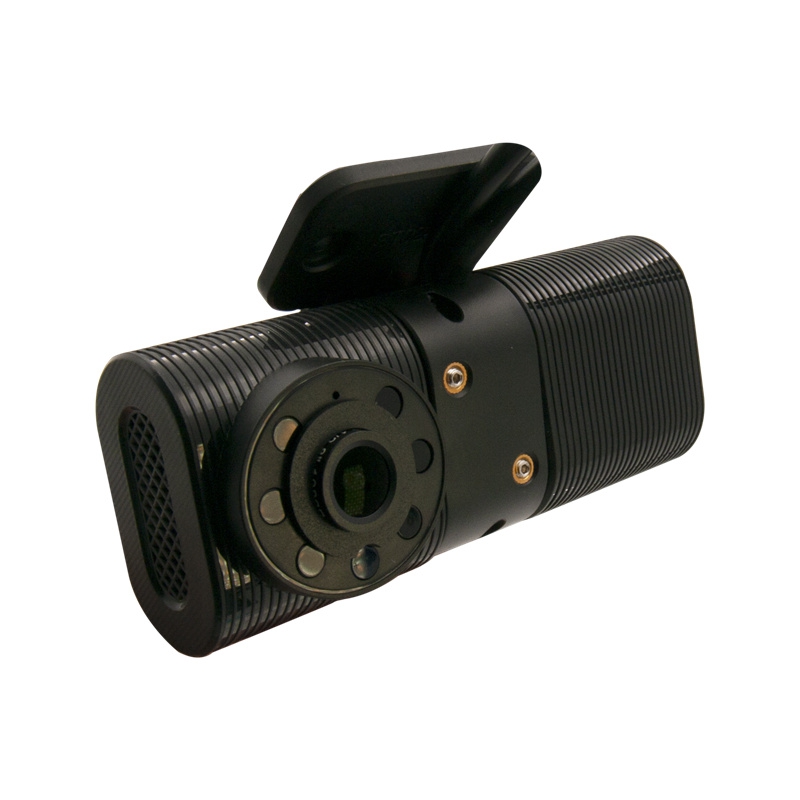

Front View Camera(FHD-G7)

Image sensor	1/2.9‘ cmos
Image resolution	1920*1080
Output Format	AHD/TVI/CVI
Scanning System	Progressive Scanning
Vedio Output	1.0Vp-p, 75Ohm
Viewing Angle	120°
Image Mode	Normal
Audio	Yes
Gamma Value	0.45
BLC	Auto
AGC	Auto
White Balance	Auto
Electronic Shutter	1/30’---1/50000’sceonds
Minimum Illumination	0.1lux
Dynamic Range	120db
SNR	52Db
Operating temperature	-30oC---70oC， RH95%MAX
Storage temperature	-40oC——80oC，RH95%MAX
Power Supply	12V±10%

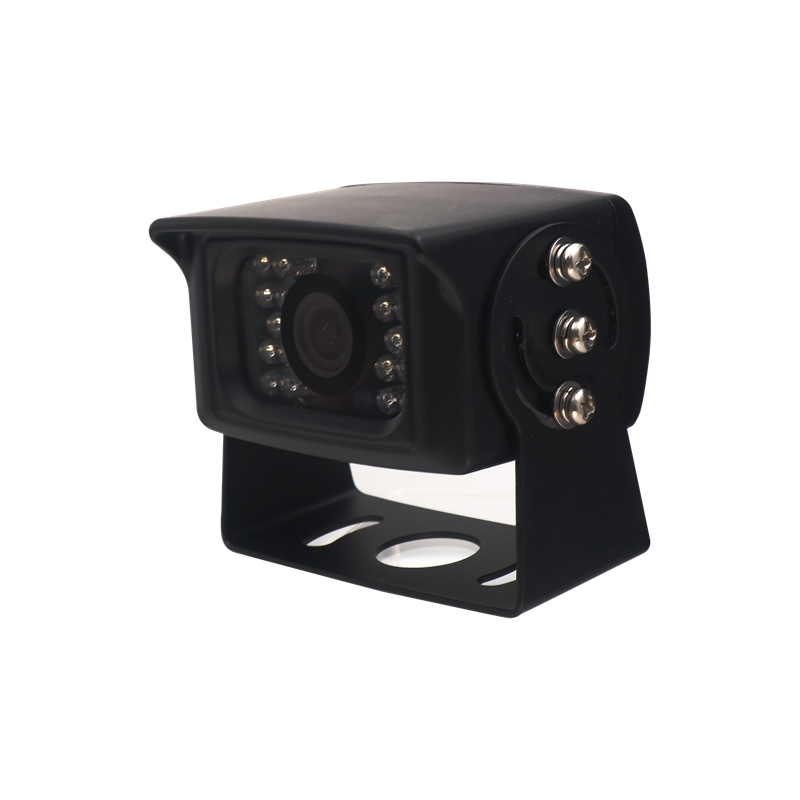

1080P Internal View Vehicle Camera(G3)

Image sensor	1/2.9‘ cmos
Image resolution	1920*1080
Output Format	AHD/TVI/CVI
Scanning System	Progressive Scanning
Vedio Output	1.0Vp-p, 75Ohm
Viewing Angle	150°
Image Mode	Normal/Mirror
Audio	Yes
Gamma Value	0.45
BLC	Auto
AGC	Auto
White Balance	Auto
Electronic Shutter	1/30’---1/50000’sceonds
Minimum Illumination	0lux
Night Vision Distance	3m—5m
Dynamic Range	85db
SNR	52Db
Operating temperature	-30oC---70oC， RH95%MAX
Storage temperature	-40oC---80oC，RH95%MAX
Power Supply	12V±10%

If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
